Richards-Wilcox Canada is the proven leader in the residential and industrial sectional door industry.

Our commitment is to be the highest quality, most competitive door systems manufacturer in the world.

We use the latest technology in continuous polyurethane manufacturing processes combined with design ingenuity that has resulted in world class door systems characterised by superior adhesion and structural integrity.

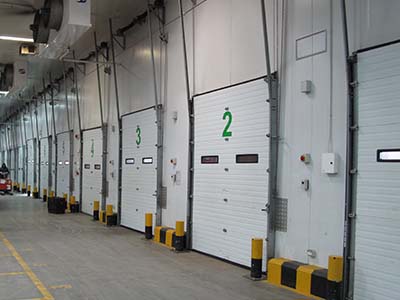

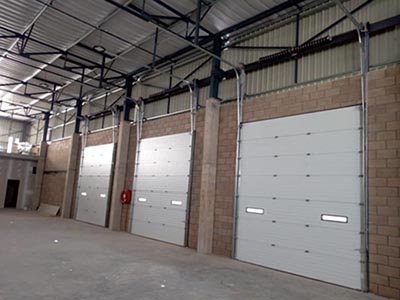

Thermatite Series

Sectional Steel Insulated Doors.

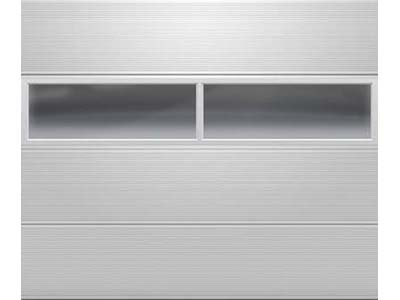

T150-MR, T150, T175-MR, T175, ADV200-MR, ADV200, T175-20, T200A-MR, T200A, NEW! T300-MR, T300

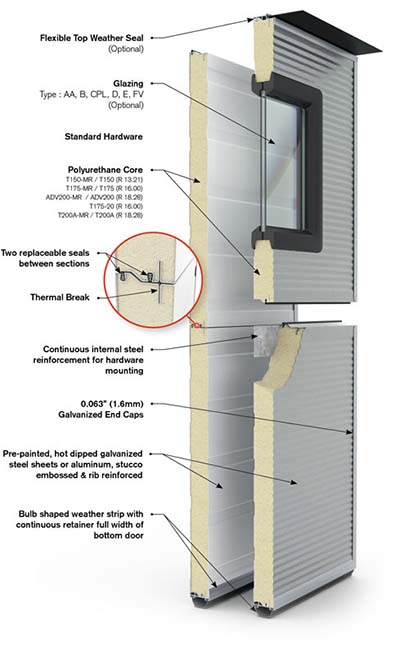

Thermatite Door Systems are built stronger with Neufoam™ technology – a continuous foaming process that renders cavity-free sections. No air pockets inside the panel ensures superior adhesion of our CFC/HCFC-free polyurethane insulation to the steel skin, preventing delamination and providing exceptional structural integrity. The door has a higher strength-to-weight ratio, offers a better thermal barrier (higher R-Value) and resists deflection. Sections feature thermal breaks and two continuous replaceable seals to minimize air flow. Installed with our highest quality hardware components, Thermatite Insulated Doors are engineered to provide many years of worry-free operation and are suitable for a wide range of applications.

Alumatite Series

Sectional aluminium overhead doors.

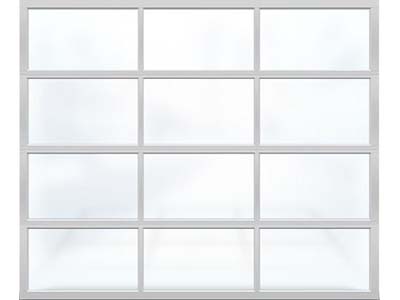

A150, A175, A150T, A175T

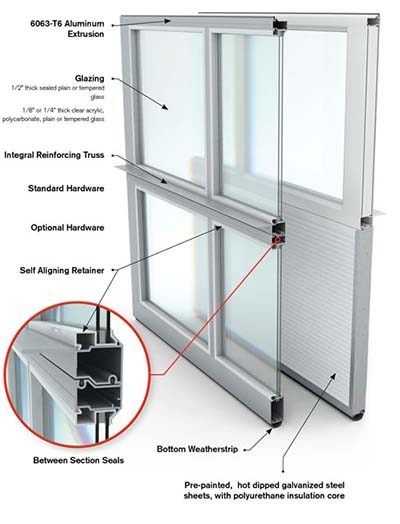

Alumatite Door Systems are designed to provide an attractive and practical solution when maximum light and/or visibility is required. Built to withstand heavy use and high traffic using extruded aluminum alloy rails and stiles with a full width integral horizontal reinforcing truss at each pair of meeting rails. Highest quality hardware components provide years of dependable operation. Choose from a variety of finish and glazing options or configure your door with Thermatite panels for extra strength and additional energy savings.

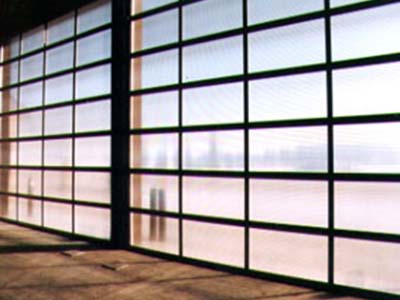

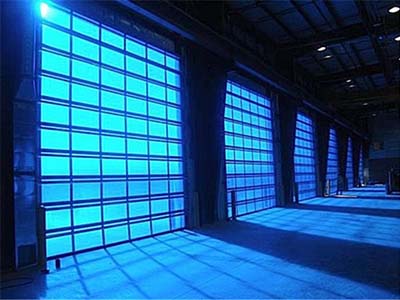

Polytite Series

Sectional polycarbonate overhead doors.

P175, P175T

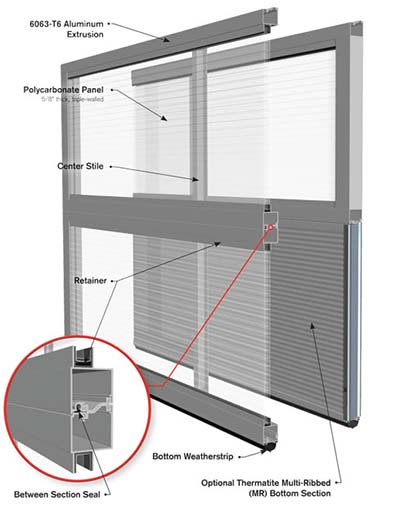

Polytite Door Systems are made with triple-walled polycarbonate panels that are strong yet lightweight, providing easy operation with minimum stress on hardware components. The translucent panels provide a naturally-lit, inviting work environment and help reduce winter heating costs through the effects of solar heat gain. The panels are also extremely impact-resistant and can withstand long-term exposure to extreme elements such as sun, wind, rain and snow without cracking or splitting. Particularly suited for service garages but ideal for all types of industrial, agricultural, commercial, institutional and residential overhead door installations where an attractive, light-transmitting, strong, lightweight door is desired

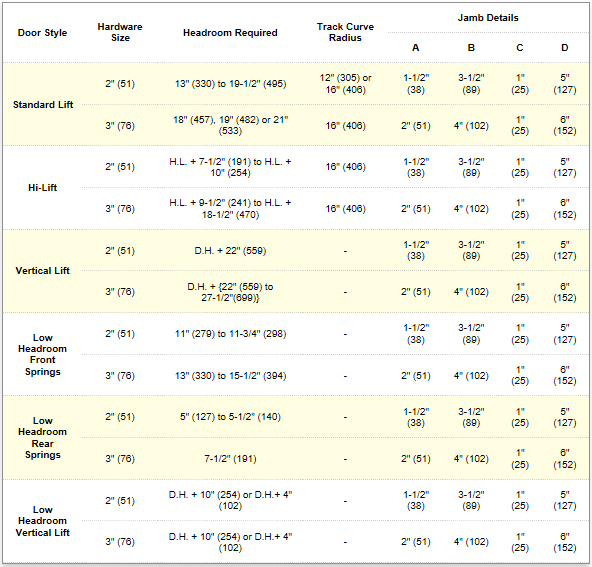

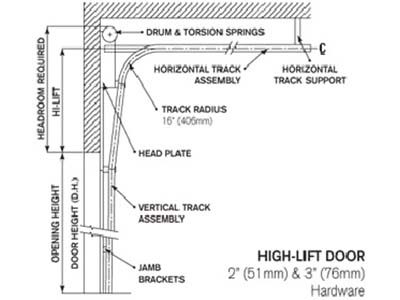

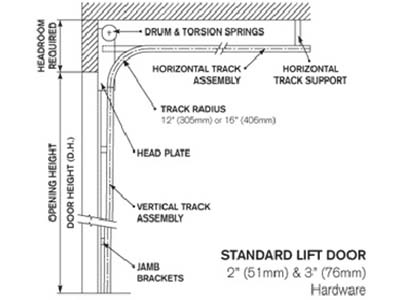

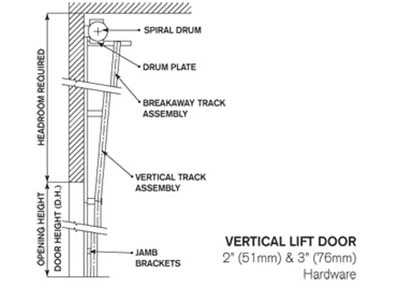

Clearance & Mounting Requirements

Richards Wilcox Clearance Mounting Requirements
